Model : M6*1.0-SFT-C-6H

To produce well-designed cutting tools, which have both long life and high quality, equal emphases must be laid on the factors of the cutting tool material, product material as well as processing ways of the machines. All of our cutting tools are accordingly processed to the cut material, with appropriate cutting angle, and made from high-quality tungsten carbide. This measure not only prolongs the life of tools, enhances product quality, but also allows product to have greater wearing quality.Cut Materials: brass/bronze, low lead brass/bronze, brass/bronze pipe/tube, zinc alloy casting, iron, hardness iron, cast iron, steel, carbon steel, hardness carbon steel, aluminum die casting, aluminum alloy 6 system and 7 system, magnesium alloy, titanium alloy, plastic, carbon fiber CM, glass fiber CM, bakelite, and many more.To purchase or inquire price, please specify the desired cut materials (i.e. the material of the matter that will be cut by our products) for faster and more accurate service.

設計製作滿足自動化生產高效能/高壽命/高精度等高經濟價值的鎢鋼直溝絲攻必須針對被加工件以下的參數特徵製作最適用的螺紋絲攻,

1.螺紋直徑&牙距   2.工件材質    3.通孔/盲孔   4.螺紋深度  5.品管檢驗要求


客戶需求確認單-範例 Order List-Example
序號
NO.
總類
Type
螺紋規格-精度
Thread Size-class
被削材質
Workpiece
Material
通孔/盲孔
Through /
length

螺紋深度
Thread /
length

檢驗要求
Quality Control
設備導程
Machine Pitch
特殊要求
Special Request
1 全鎢鋼
Solid Carbide
M10x1.5-6H 青銅
Bronze
盲孔
Blind hole
15mm 通止規合格
Thred Gauge
穩定
Stable
牙規+塞規檢驗合格
2 焊接
Welding Carbide
3/4-16UNF-2B

壓鑄鋁
AC

通孔
Through hole
20mm 工作實配
Match workpiece
不穩定
Through Unstable
不穩定
Through Unstable

 本公司生產多種絲攻標準柄,包含 JIS柄 DIN 柄 銑刀柄 ER筒夾柄 等多種絲攻柄選擇,可滿足不同設備之使用需求。

本公司備有公制 M 螺紋 統一UN螺紋 惠氏W螺紋 管用螺紋 G PT PF PS NPSM NH NPT NPSL NPSF等各國螺紋標準規範,滿足使用者不同螺紋製造組合裝配之設計需求。







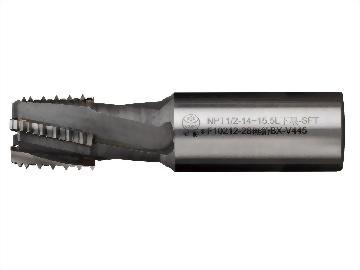

全鎢鋼螺旋溝-公制螺紋-JIS方頭圓柄
跳牙全鎢鋼螺旋溝-公制螺紋-JIS方頭圓柄

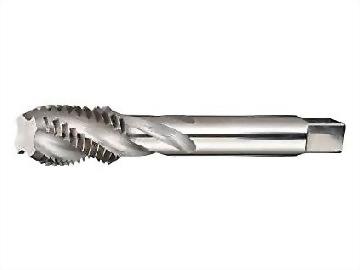

Solid Carbide Taps -Spiral Flutes-Metric Thread (JIS Shank)
Interrupted Solid Carbide Taps -Spiral Flutes-Metric Thread (JIS Shank)
選用:□鍍鈦  □跳牙    Selection:□Coated  □Interrupted
公制細牙規格 M
Metric Thread
Shape 四方柄 Square 精 度
Class
無效牙長
Remarks

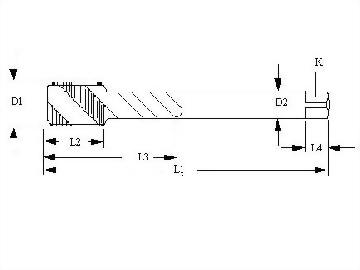

總長(L)   刃長 (Lc)  工作長(Lw)  柄徑(d) 對邊(k) 邊長(Lk)
Chamfer Length
M3*0.5 50 10 4 3.2 6 6H 2P OA/O
M3.5*0.6 50 12 4 3.2 6 6H 2P OA/O
M4*0.7 50 12 5 4 7 6H 2P A/OA/O
M4.5*0.75 50 12 5 4 7 6H 2P A/OA/O
M5*0.8 60 16 5.5 4.5 7 6H 2P A/OA/O
M6*1.0 60 16 6 4.5 7 6H 2P A/C/O
M8*1.25 70 20 6.2 5 8 6H 2P A/C/CH
M10*1.5 75 23 7 5.5 8 6H 2P A/C/CH
M12*1.75 75 23 8.5 6.5 9 6H 2P A/C/CH
M14*2.0 75 23 10.5 8 11 6H 2P A/C/CH
M16*2.0 75 23 12.5 10 13 6H 2P A/C/CH
公制細牙規格 MF
Metric Fine Thread
Shape 四方柄 Square 精 度
Class
無效牙長
Remarks
總長(L)   刃長(Lc)  工作長(Lw)  柄徑(d) 對邊(k) 邊長(Lk)
Chamfer Length
MF4*0.5 50 8 5 4 7 6H 2P A/OA/O
MF5*0.5 60 8 5.5 4.5 7 6H 2P A/OA/O
MF6*0.5 60 8 6 4.5 7 6H 2P A/OA/O
MF6*0.75 60 8 6 4.5 7 6H 2P A/OA/O
MF8*0.75 70 8 6.2 5 8 6H 2P A/C/CH
MF8*1.0 70 10 6.2 5 8 6H 2P A/C/CH
MF10*0.75 75 8 7 5.5 8 6H 2P A/C/CH
MF10*1.0 75 10 7 5.5 8 6H 2P A/C/CH
MF10*1.25 75 12 7 5.5 8 6H 2P A/C/CH
MF12*1.0 75 12 8.5 6.5 9 6H 2P A/C/CH
MF12*1.25 75 12 8.5 6.5 9 6H 2P A/C/CH
MF12*1.5 75 12 8.5 6.5 9 6H 2P A/C/CH
MF14*1.0 75 13 10.5 8 11 6H 2P A/C/CH
MF14*1.25 75 13 10.5 8 11 6H 2P A/C/CH
MF14*1.5 75 13 10.5 8 11 6H 2P A/C/CH
MF16*1.0 75 13 12.5 10 13 6H 2P A/C/CH
MF16*1.5 75 13 12.5 10 13 6H 2P A/C/CH
To produce well-designed cutting tools, which have both long life and high quality, equal emphases must be laid on the factors of the cutting tool material, product material as well as processing ways of the machines. All of our cutting tools are accordingly processed to the cut material, with appropriate cutting angle, and made from high-quality tungsten carbide. This measure not only prolongs the life of tools, enhances product quality, but also allows product to have greater wearing quality.Cut Materials: brass/bronze, low lead brass/bronze, brass/bronze pipe/tube, zinc alloy casting, iron, hardness iron, cast iron, steel, carbon steel, hardness carbon steel, aluminum die casting, aluminum alloy 6 system and 7 system, magnesium alloy, titanium alloy, plastic, carbon fiber CM, glass fiber CM, bakelite, and many more.To purchase or inquire price, please specify the desired cut materials (i.e. the material of the matter that will be cut by our products) for faster and more accurate service.
To produce well-designed cutting tools, which have both long life and high quality, equal emphases must be laid on the factors of the cutting tool material, product material as well as processing ways of the machines. All of our cutting tools are accordingly processed to the cut material, with appropriate cutting angle, and made from high-quality tungsten carbide. This measure not only prolongs the life of tools, enhances product quality, but also allows product to have greater wearing quality.Cut Materials: brass/bronze, low lead brass/bronze, brass/bronze pipe/tube, zinc alloy casting, iron, hardness iron, cast iron, steel, carbon steel, hardness carbon steel, aluminum die casting, aluminum alloy 6 system and 7 system, magnesium alloy, titanium alloy, plastic, carbon fiber CM, glass fiber CM, bakelite, and many more.To purchase or inquire price, please specify the desired cut materials (i.e. the material of the matter that will be cut by our products) for faster and more accurate service.
