NPSM,NPSF,NPSH,NPSL,NPSH,NPSI 1/8"-27~3/8"-18
Model : NPSM,NPSF,NPSH,NPSL,NPSH,NPSI 1/8"-27~3/8"-18

To produce well-designed cutting tools, which have both long life and high quality, equal emphases must be laid on the factors of the cutting tool material, product material as well as processing ways of the machines. All of our cutting tools are accordingly processed to the cut material, with appropriate cutting angle, and made from high-quality tungsten carbide. This measure not only prolongs the life of tools, enhances product quality, but also allows product to have greater wearing quality.Cut Materials: brass/bronze, low lead brass/bronze, brass/bronze pipe/tube, zinc alloy casting, iron, hardness iron, cast iron, steel, carbon steel, hardness carbon steel, aluminum die casting, aluminum alloy 6 system and 7 system, magnesium alloy, titanium alloy, plastic, carbon fiber CM, glass fiber CM, bakelite, and many more.To purchase or inquire price, please specify the desired cut materials (i.e. the material of the matter that will be cut by our products) for faster and more accurate service.


客戶需求確認單-範例 Order List-Example
序號
NO.
總類
Type
螺紋規格-精度
Thread Size-class
被削材質
Workpiece
Material
通孔/盲孔
Through /
length

螺紋深度
Thread /
length

檢驗要求
Quality Control
設備導程
Machine Pitch
特殊要求
Special Request
1 全鎢鋼
Solid Carbide
M10x1.5-6H 青銅
Bronze
盲孔
Blind hole
15mm 通止規合格
Thred Gauge
穩定
Stable
牙規+塞規檢驗合格
2 焊接
Welding Carbide
3/4-16UNF-2B

壓鑄鋁
AC

通孔
Through hole
20mm 工作實配
Match workpiece
不穩定
Through Unstable
不穩定
Through Unstable


全鎢鋼直溝絲攻-平行 & 錐度管用螺紋-JIS方頭圓柄
跳牙全鎢鋼直溝絲攻-平行 & 錐度管用螺紋-JIS方頭圓柄
Solid Carbide Taps -Straight Flutes-Parallel & Taper Pipe Thread (JIS Shank)
Interrupted Solid Carbide Taps -Straight Flutes-Parallel & Taper Pipe Thread (JIS Shank)
選用:□鍍鈦  □跳牙    Selection:□Coated  □Interrupted

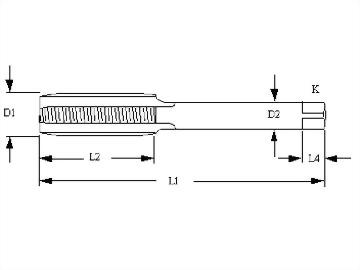

管用平行牙規格
Pipe Parallel Thread
G(PF) & Rp(PS) & NPSM
Shape 四方柄 Square 精 度
Class
無效牙長
Remarks
總長(L)    刃長(Lc)  工作長(Lw)   柄徑(d) 對邊(k) 邊長(Lk)
Chamfer Length
G(PF)1/16-28 60 16 8 6 9 ISO =2P/=5P A/B/C/CH
G(PF)1/8-28 60 16 8 6 9 ISO =2P/=5P A/B/C/CH
G(PF)1/4-19 75 23 11 9 12 ISO =2P/=5P A/B/C/CH
G(PF)3/8-19 75 23 14 11 14 ISO =2P/=5P A/B/C/CH
Rp(PS)1/16-28 60 16 8 6 9 ISO =2P/=5P A/B/C/CH
Rp(PS)1/8-28 60 16 8 6 9 ISO =2P/=5P A/B/C/CH
Rp(PS)1/4-19 75 23 11 9 12 ISO =2P/=5P A/B/C/CH
Rp(PS)3/8-19 75 23 14 11 14 ISO =2P/=5P A/B/C/CH
NPSM1/16-27 60 16 8 6 9 ANSI =2P/=5P A/B/C/CH
NPSM1/8-27 60 16 8 6 9 ANSI =2P/=5P A/B/C/CH
NPSM1/4-18 75 23 11 9 12 ANSI =2P/=5P A/B/C/CH
NPSM3/8-18 75 23 14 11 14 ANSI =2P/=5P A/B/C/CH
管用推拔牙規格
Pipe Taper Thread
NPT & NPTF & PTF & Rc(PT)
Shape 四方柄 Square 精 度
Class
無效牙長
Remarks
總長(L)    刃長(Lc)  工作長(Lw)  柄徑(d) 對邊(k) 邊長(Lk)
Chamfer Length
NPT1/16-27 60 16 8 6 9 ANSI =2P/=5P A/B/C/CH
NPT1/8-27 60 16 8 6 9 ANSI =2P/=5P A/B/C/CH
NPT1/4-18 75 23 11 9 12 ANSI =2P/=5P A/B/C/CH
NPT3/8-18 75 23 14 11 14 ANSI =2P/=5P A/B/C/CH
NPTF1/16-27 60 16 8 6 9 ANSI =2P/=5P A/B/C/CH
NPTF1/8-27 60 16 8 6 9 ANSI =2P/=5P A/B/C/CH
NPTF1/4-18 75 23 11 9 12 ANSI =2P/=5P A/B/C/CH
NPTF3/8-18 75 23 14 11 14 ANSI =2P/=5P A/B/C/CH
PTF1/16-27 60 16 8 6 9 ANSI =2P/=5P A/B/C/CH
PTF1/8-27 60 16 8 6 9 ANSI =2P/=5P A/B/C/CH
PTF1/4-18 75 23 11 9 12 ANSI =2P/=5P A/B/C/CH
PTF3/8-18 75 23 14 11 14 ANSI =2P/=5P A/B/C/CH
Rc(PT)1/16-28 60 16 8 6 9 ISO =2P/=5P A/B/C/CH
Rc(PT)1/8-28 60 16 8 6 9 ISO =2P/=5P A/B/C/CH
Rc(PT)1/4-19 75 23 11 9 12 ISO =2P/=5P A/B/C/CH
Rc(PT)3/8-19 75 23 14 11 14 ISO =2P/=5P A/B/C/CH
NPSM,NPSF,NPSH,NPSL,NPSH,NPSI Parallel Pipe Thread,Straight Flutes Taps,Full Carbide
NPSM,NPSF,NPSH,NPSL,NPSH,NPSI 1/8"-27~3/8"-18
NPSM,NPSF,NPSH,NPSL,NPSH,NPSI Parallel Pipe Thread,Straight Flutes Taps,Full Carbide
NPSM,NPSF,NPSH,NPSL,NPSH,NPSI 1/8"-27~3/8"-18

Products- UGMIC carbide taps, thread dies, thread mills
