Roll Form Tap. (HSS-Co)Cobalt- high-speed steel (SpT.Hc)
Features:
Roll Form Tap ╳ High-speed steel with cobalt (HSS-Co) ╳ Special workpiece material parameters #C (Special rolling clearance + Special thread back-relief (clearance) + Special oil groove)
Advantages:
• High-speed steel containing cobalt (HSS-Co) = High rigidity + High hardness + Wear resistance + Extremely high red hardness + Less prone to softening during annealing
• Roll Form tap = Eliminates chip trapping and sticking issues + High thread strength
• Dedicated rolling clearance = High performance + Long lifespan + Low cutting torque = High efficiency
• Dedicated thread back-relief (clearance) = Stable thread dimensions + Less prone to springback + Less prone to shrinkage + Resistance to temperature rise + Resistance to chip sticking = High stability
• Dedicated oil groove = Optimized lubrication + Cooling + Blind hole pressure relief + Reduced thread burrs

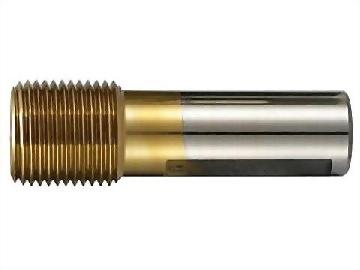

Roll Form Tap. (HSS-Co)Cobalt- high-speed steel (SpT.Hc) + (optional) = internal coolant (H) + Titanium plating (Ti)
Features:
Roll Form Tap ╳ High-speed steel with cobalt (HSS-Co) ╳ Special workpiece material parameters #C (Special rolling clearance + Special thread back-relief (clearance) + Special oil groove) ╳ Internal cooling (H) ╳ Titanium plating (Ti)
Advantages:
• High-speed steel with cobalt (HSS-Co) = High rigidity + High hardness + Wear resistance + Extremely high red hardness + Less prone to annealing softening
• Roll Form Tap = Eliminates chip trapping and sticking issues + High workpiece thread strength
• Dedicated rolling clearance = High performance + Long life + Low cutting torque = High efficiency
• Dedicated thread back-relief (clearance) = Stable thread dimensions + Less prone to springback + Less prone to shrinkage + Temperature rise resistance + Anti-chip sticking = High stability
• Dedicated oil groove = Optimized lubrication + Cooling + Blind hole pressure release + Reduced thread burrs
• Internal cooling = Center-outlet forced cooling + Forced lubrication = Optimized thread surface + Long life + High efficiency
• Titanium plating (TiCN) = Anti-friction, high temperature resistance = Long life
Super long-lasting type [high-speed steel containing cobalt + Roll Form fluteless taps] long life, high precision, only better & more cost-effective!!
Applicable workpiece materials: high toughness, high ductility, high hole shrinkage
(rigid tapping & concentricity within 0.02mm)
1. Stainless Steel SUS304 ，SUS316L，SUS630 (Very good effect)
2. Hardness Steel HRC28~HRC45 (Very good effect)
3. High temperature alloy: titanium alloy T64, Inconel 718，Inconel 625
4. Ni-Cr-Mo steel, Tool steel, Carbon steel, iron, Aluminum, phosphor bronze, aluminum bronze (material with high toughness and ductility)
The above only lists the workpiece materials with obvious cost-effectiveness. More non-steel materials can also obtain high cost-effective results. Welcome to inquire!!
Solve the automation problems of CNC lathes, CNC milling machines and CNC special machines
1. It is easy to cause shrinkage holes after tapping, and the size is unstable (UGMIC spiral tapping can completely cut = reduce shrinkage holes problem).
2. Short service life, rapid shrinkage cavity problem, tooth gauge inspection = failure to pass through the gauge. (UGMIC can effectively reduce this problem)
3. When using an oversized tap, it is easy to stop the gauge from advancing and the gauge cannot be passed all the way through.
4. Requires heat treatment (UGMIC long super long-lasting spiral tapping completely cutting = reduce shrinkage cavity)
5. Surface treatment (Coating, Carburizing) is required, and the tap size can be controlled (customized products) to avoid secondary processing.
6. UGMIC products can meet CNC automated production, reduce the number of tool changes, and reduce overall costs.
Satisfy inspection requirements & customized dimensions (rigid tapping & concentricity within 0.02mm) UGMIC accepts customized tap sizes, enlarged sizes, and sizes that meet actual process requirements, and OEM customization.。
Thread specifications that satisfy the needs of various industries (meet the requirements of pass-and-stop regulations and customized specification sizes)
General thread standards : M、UNC、UNF、UNEF、UN、UNS、W、BSW、BSF、…。
Pipe thread standards : PT、PF、PS、PJ(日本)、Rc、Rp、NPT、NPTF、PTF、NPS、NH、…。
Tire valve thread standard: V、CTV ; Bicycle thread standard : BC、BSC ;
trapezoid thread standards: TW、ACME、STUB、Tr。
